Sample client guide

Python Client

Client Setup

Download url:

https://github.com/SSI-Securities-Corporation/python-fctrading

Python

Requires Python 3.x up (you can download at python.org/downloads/release/python-370/)

Note: Please tick Add system path when setting up Python.

Install Client

Step 1: Unzip the downloaded file.

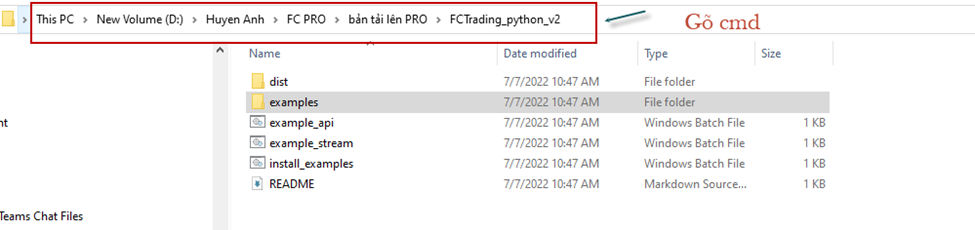

Step 2: Type cmd to open command line

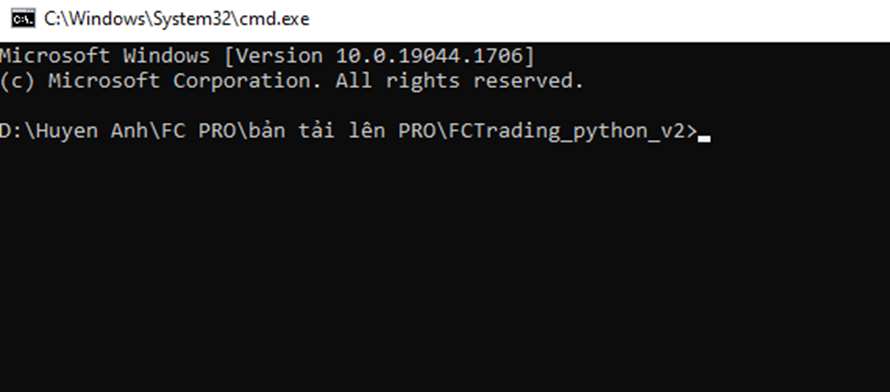

The following screen is displayed:

Step 3: Change the consumerid and consumer secret, and twoFAtype in file fc_config.py at examples folder.

Note: TwoFAType = 0: PIN and 1: OTP (SMS/ Email/ SmartOTP)

Step 4: Run the following command

pip install ssi-fctrading

Note: If your network is behind a proxy, please configure proxy as guided here.

Note:

+ Just need to install once. After that, to run the client, only need to double click file example_api and example_stream

  • Place/Amend/Cancel orders and query through link: http://127.0.0.1:8000/docs (marked red in the picture)

  • Order update through streaming connection

+ Files example_api and example_streaming include all functions provided

Run Client

After installation, the folder will have the following files:

  • fc_config.py: contains connection parameters

  • example_api: executable file to test the api

  • example_stream: to test streaming connection

Connection configuration

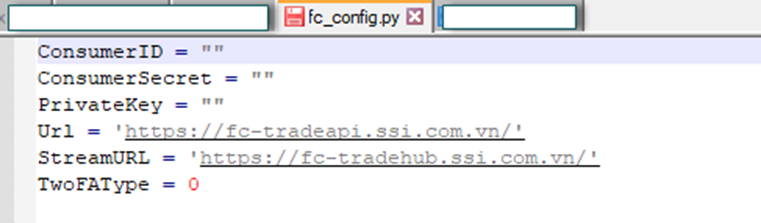

Change the consumerID, consumerSecret, privateKey in fc_config.py to your API connection keys and input your twoFAtype and save the file. You just need to setup once.

Run the api

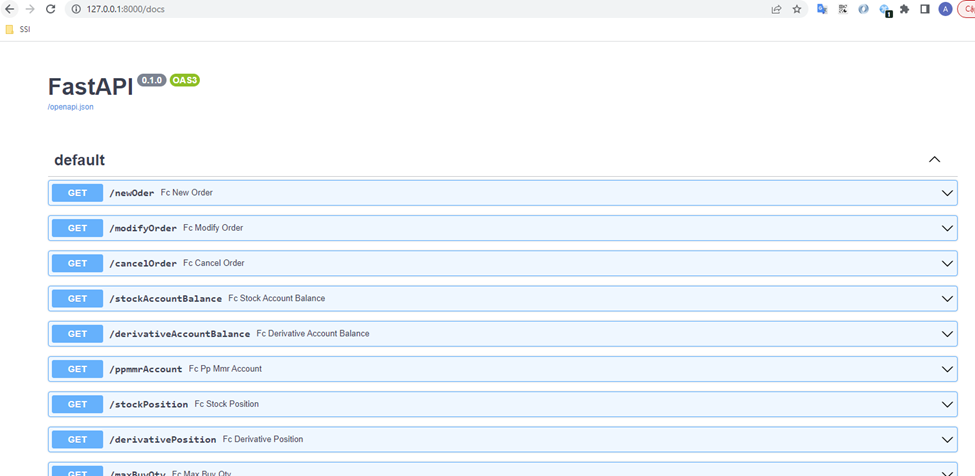

Double click example_api, then open link: http://127.0.0.1:8000/docs to start using the APIs.

Streaming

  • Double click file example_stream to connect streaming.

Node.js Client

Client Setup

Download URL

https://github.com/SSI-Securities-Corporation/python-fctrading

Setup Node.js

  • Requires Node.js (from v.10.15.3 up)

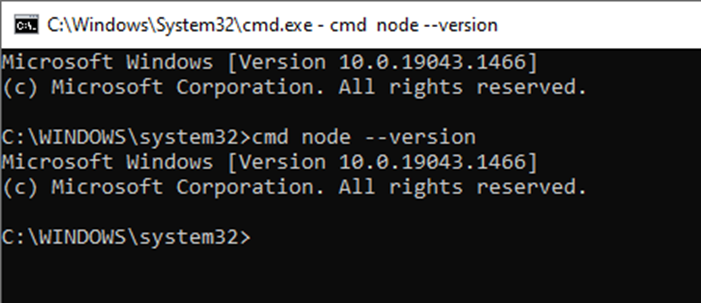

  • Check if Node.js is installed and what version by command: cmd node –version

Install Client

Step 1: Download the client and unzip

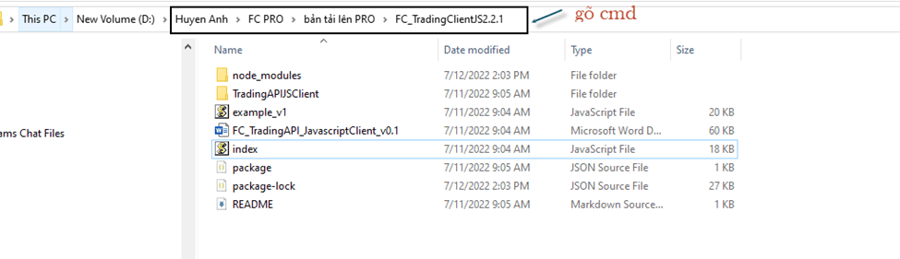

Step 2: Type cmd to launch command line

Step 3: Run the following command

npm install ssi-fctrading

Note: If your network is behind a proxy, please configure proxy as guided here.

Run Client

After installation is finished, there is index.js file in the folder. This file contains information about connection configuration, sample test data and is the main executed file. You will need to change the data in the file before running it. Follow the steps mentioned below:

Configuration

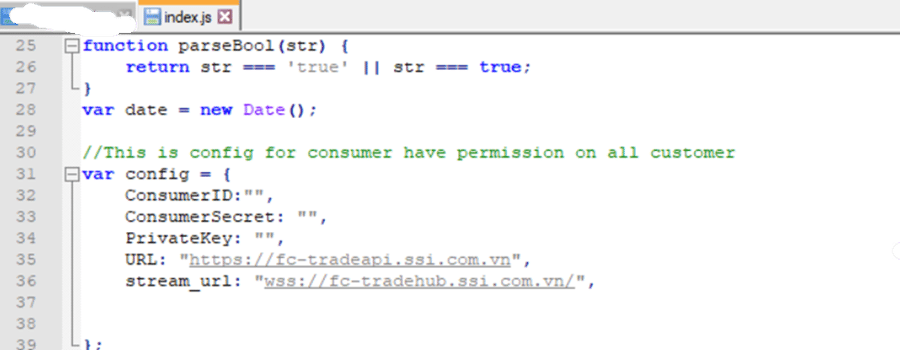

  • Input your ConsumerID, ConsumerSecret, PrivateKey to config session in index.js file.

  • Input your registered authentication type to the field TwoFAType. If you use PIN, input 0. If you use SMS OTP/Email OTP/SmartOTP,input 1.

Input account and order info

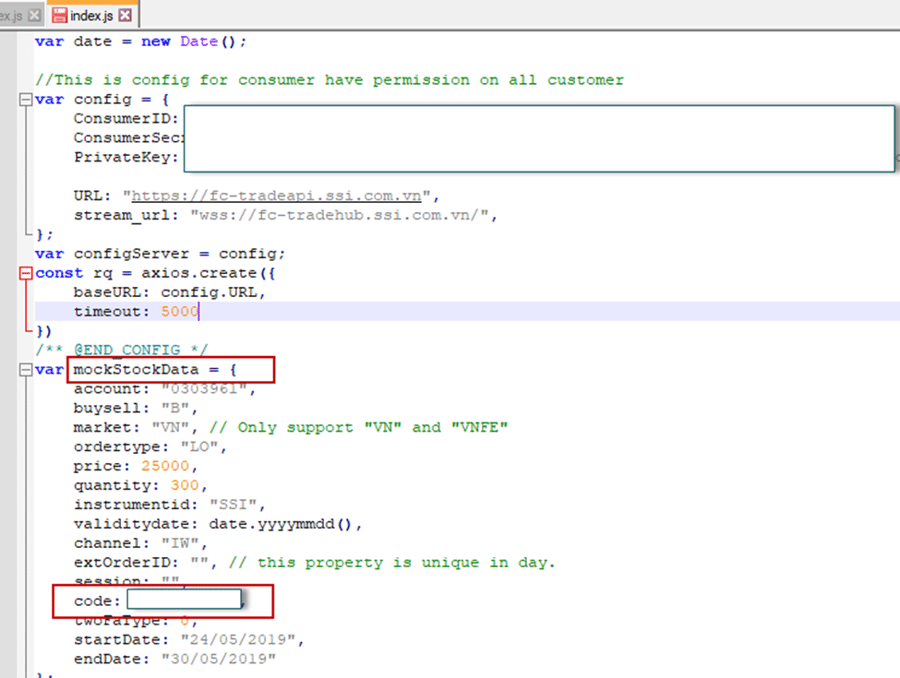

In index.js file, the variable "mockStockData" contains info to place cash market order and the variable "mockDerivativeData" contains info to place derivatives order. You need to change the values of account, ordertype, stock symbol, price, volume as you wish and save the file.

Input authentication code

Input the authentication code to the field "code" ở in “mockStockData” và “mockDeterativeData” of index.js file and save.

How to get authentication code

  • If you use PIN, enter the PIN code

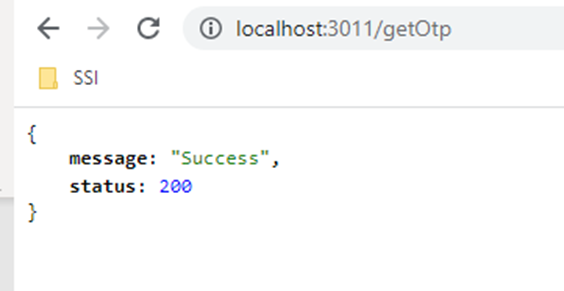

  • If you use SMS/Email OTP: open web browser and run: localhost:3011/getOTP to get the OTP code.

  • If you use SmartOTP: input the OTP code on your SSI SmartOTP or iBoard depending on which app you activated the SmartOTP.

Run the client

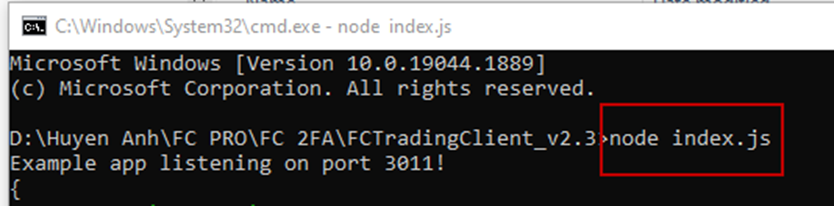

Open cmd screen and run: node index.js

Place order and monitor streaming

  • Open web browser and type in: localhost:3011/NewOrder

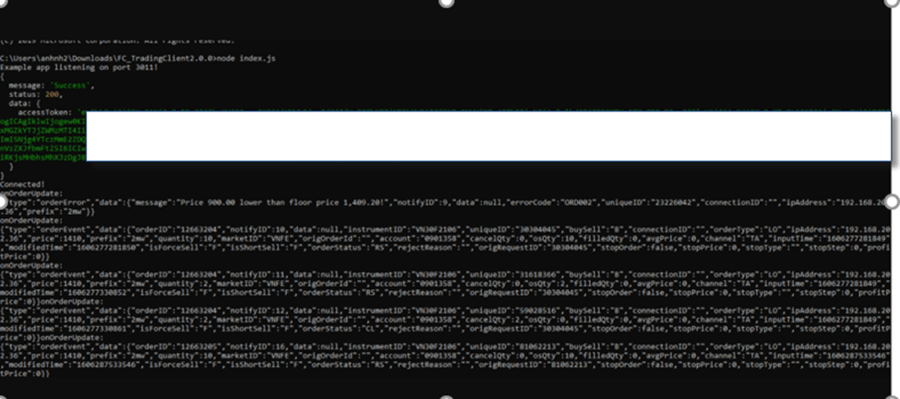

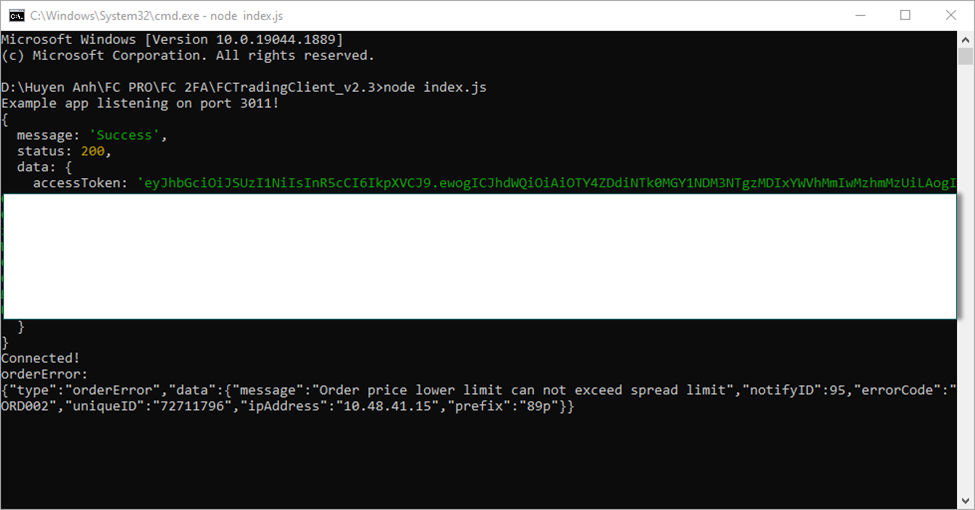

  • Monitor the streaming on the cmd screen used to run index.js before

You can also try another APIs by typing the corresponding name in index.js file.

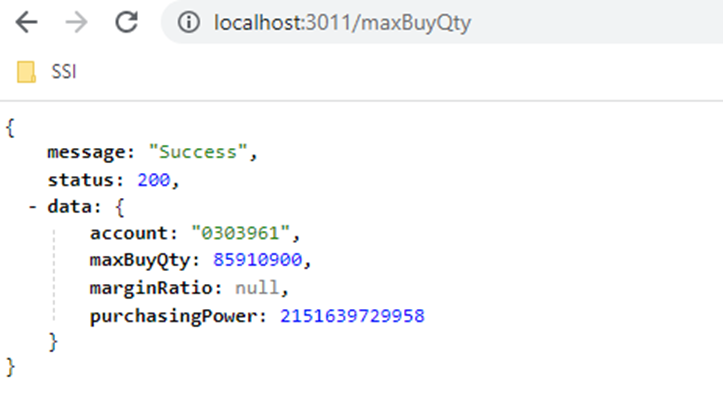

For example, to get purchasing power of the account, run the command localhost:3011/maxBuyQty

Order streaming is updated only when there is an order placed/amended/cancelled/matched.

Derivatives portfolio streaming is updated only when there is an order matched or changed in market price.

Java Client

Client Setup

Download URL

https://github.com/SSI-Securities-Corporation/java-fctrading

Setup Java

Requires computer or laptop to have Java installed

Install Client

Step 1: Download the client and unzip

Step 2: Type cmd to launch command line

The screen displays the window as follows:

Step 3: Run the following command

java -jar <tensamplejava>.jar

Run Client

In the installed folder, there are two files:

  • fctrading.json is the file storing service connection configuration (service access endpoints, ConsumerID, ConsumerSecret, privateKey). You need to input the API connection key created on iBoard at registration steps to this file before running the client.

  • samples-2.0.0 run file jar

Setup API connection key to fctrading.json file

Input your API connection key to the fctrading.json file and save.

  • ConsumerId

  • ConsumerSecret

  • privateKey

File fctrading.json contains pre-set input parameters for the APIs. You can change these parameters to feed your needs.

To change the input paramters, open the file fctrading.json (with Notepad ++…), edit the values and save.

To run the test:

Step 1: Input your API connection key to the fctrading.json file and save.

Note:

  • code: Enter the PIN code if the Customer uses the PIN authentication method

  • If the customer uses the OTP authentication method ->no required

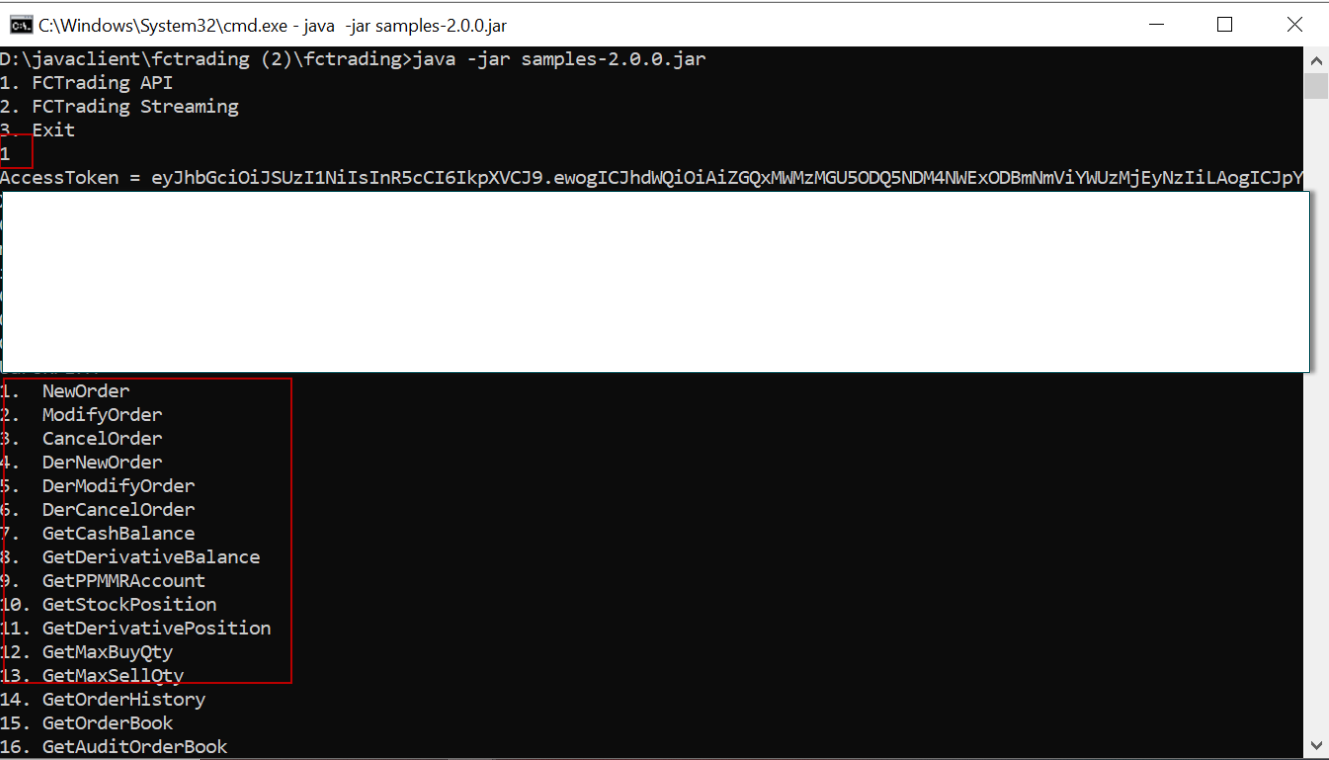

Step 2: Run Client and select 1 + Corresponding API order to test API

Note:

  • If the connection key is re-entered or API input is changed, it is necessary to Save file and select number 35 to reinitiate Client.

  • Reinitiate Client -> Select number 3 to exit.

  • If customer's authentication method is OTP -> for the first initiation, isSave = false by default and OTP is required.

  • In case customer's authentication method is OTP and isSave = false -> OTP is required for any transaction.

Monitor streaming

Run Client and select 2 to listen to the stream

Client .Net

Client Setup

Download URL

https://github.com/SSI-Securities-Corporation/dotnet-fctrading

Install Client

Step 1: Download the client and unzip

Client displays information as follows:

Step 2: Open Client

Double click on the text icon "SSI.FCTrading.ClientExample"

Client displays information as follows:

Run Client

In the installed folder, there are two files:

  • data is the file storing service connection configuration (service access endpoints, ConsumerID, ConsumerSecret, privateKey). You need to input the API connection key created on iBoard at registration steps to this file before running the client.

Setup API connection key to data file

Input your API connection key to the data file and save.

  • ConsumerId

  • ConsumerSecret

  • privateKey

File data contains pre-set input parameters for the APIs. You can change these parameters to feed your needs.

To change the input paramters, open the file data (with Notepad ++…), edit the values and save.

To run the test:

Step 1: Input your API connection key to the fctrading.json file and save.

Note:

  • code: Enter the PIN code if the Customer uses the PIN authentication method

  • If the customer uses the OTP authentication method ->no required

Step 2: Run Client and select 1 + Corresponding API order to test API

Note:

  • If the connection key is re-entered or API input is changed, it is necessary to Save file and select number 19 to reinitiate Client.

  • Reinitiate Client -> Select number 3 to exit.

  • If customer's authentication method is OTP -> for the first initiation, isSave = false by default and OTP is required.

  • In case customer's authentication method is OTP and isSave = false -> OTP is required for any transaction.

Monitor streaming

Run Client and select 2 to listen to the stream
