Sample client guide
Python and Node.js sample codes provided.
Service endpoints
API: https://fc-data.ssi.com.vn/v2.0/Market
Price streaming Nodejs: wss://fc-datahub.ssi.com.vn/v2.0
Price streaming Python/ .Net: https://fc-datahub.ssi.com.vn/v2.0
URL api Java/ .Net: https://fc-data.ssi.com.vn/
Price streaming Java: https://fc-datahub.ssi.com.vn/
Python Client
Setup
Sample code download link
https://github.com/SSI-Securities-Corporation/python-fcdata
Python installation
Python 3.x is required. (you can download at python.org/downloads/release/python-370/)
Note: Remember to tick on "Add system path" when setting up Python
Client installation
Step 1: Extract the downloaded zip file and go to the extracted folder
Step 2: Type cmd to the address bar to launch command line

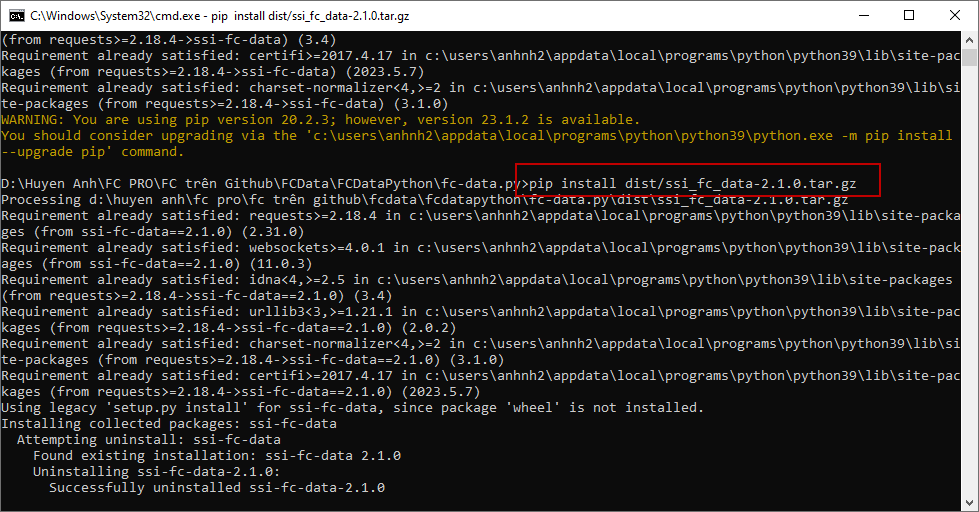

Step 3: Run the following command to install
Note: If your network requires proxy, follow steps here to configure proxy before running the installation command in step 3.
Run Client
In the installation folder, there are 3 following files:
config.py is the file storing service connection configuration (service access endpoints, ConsumerID, ConsumerSecret and PrivateKey). You need to input the API connection key created on iBoard at registration steps to this file before running the client.
test_Req_Res.py is the file run to test the APIs.
test_Streaming.py is the file run to test the streaming.
Run API

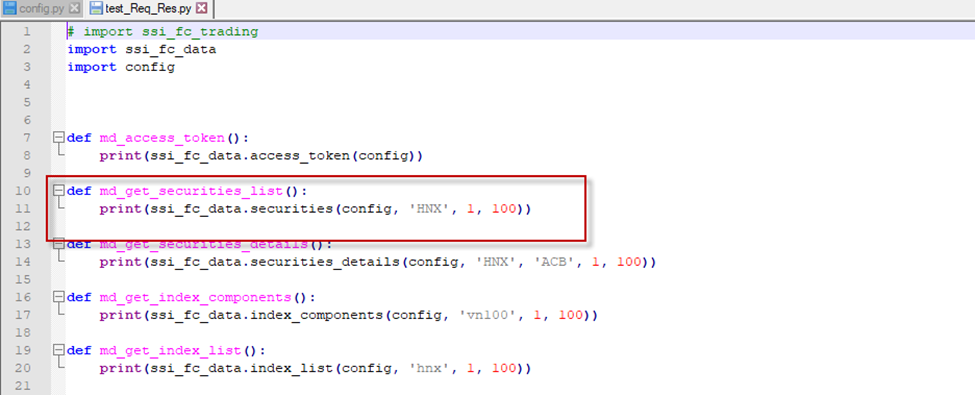

File test_Req_Res.py contains pre-set input parameters for the APIs. You can change these parameters to feed your needs.
To change the input parameters, open file test_Req_Res.py (with Notepad ++…) and amend and save the file.

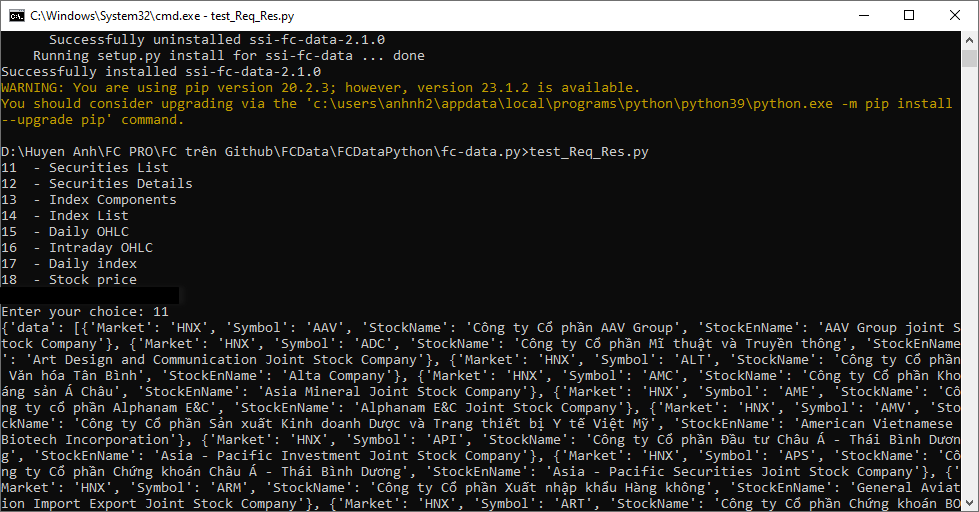

To run test the APIs, follow the steps below:
Step 1: Run the following command:
Step 2: Input from 11 to 18 to the "Enter your choice" and enter
Streaming connection
Step 1: Launch the client by command: python test_Streaming.py
Step 2: Input the following values to get the corresponding data:
ALL: All types of data
F: securities status
X: Best prices
R: Foreign room
MI: Indexes
B: Realtime OHLC
Refer to 2. Streaming FastConnect Data for more details of each message type.

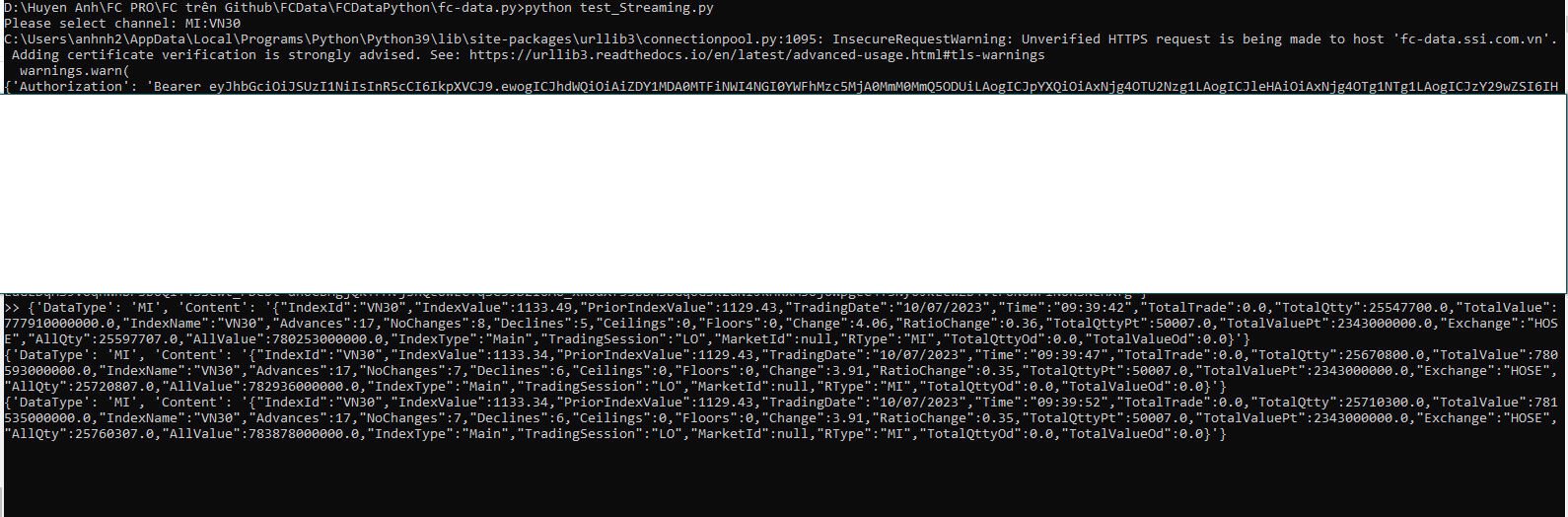

For example, to receive streaming update of VN30, input MI:VN30
Note: if you choose ALL, the volume of data can be high, causing slow from client side.
Node.js Client
Setup
Client download link
https://github.com/SSI-Securities-Corporation/node-fcdata
Or you can login iBoard and download Client from menu API Service/Service management.
Node.js setup
Requires Node.js version v.10.15.3 up.
To check if Node.js is installed and which version, run the command:
Install Node.js Client
Step 1: Extract the downloaded file.
Step 2: Launch command line

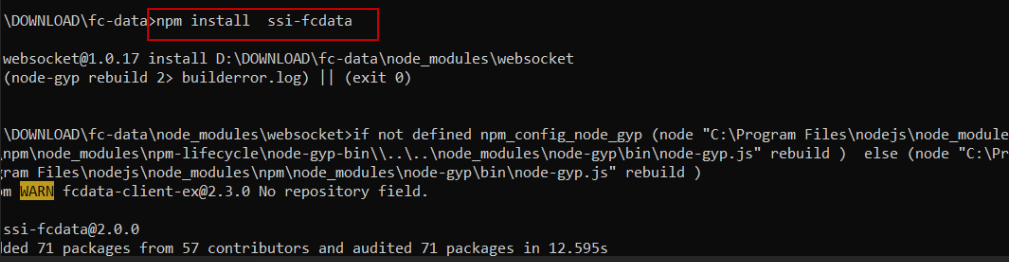

Step 3: Run the following command to install sample client
Note: If your network is behind a proxy, follow the steps here to configure proxy before running the install command in Step 3.
Run Client
In the installed folder, there are two files:
config.js: is the file storing service connection configuration (service access endpoints, ConsumerID, ConsumerSecret and PrivateKey). You need to input the API connection key created on iBoard at registration steps to this file before running the client.
main.js is the file to run test APIs and streaming.
Setup API connection key to config.js file
Input your API connection key to the config.js file and save.
ConsumerId
ConsumerSecret
Run client
File main.js contains pre-set input parameters for the APIs. You can change these parameters to feed your needs.
To change the input paramters, open the file main.js (with Notepad ++…), edit the values and save.
To run the test:
Step 1: Open command line and run the following:

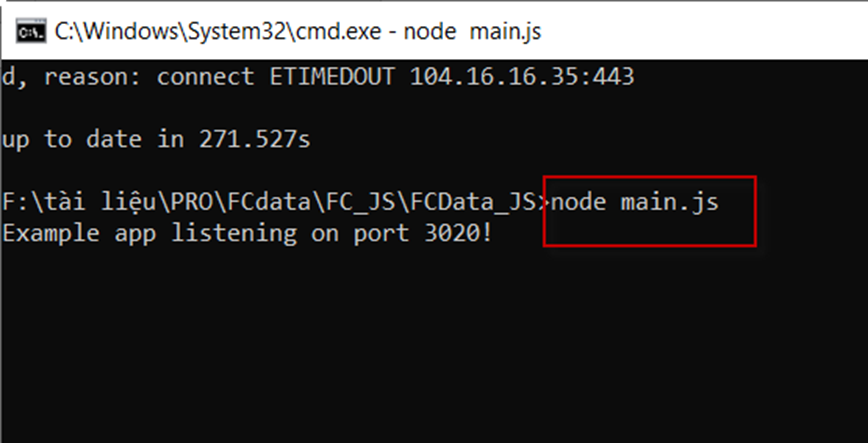

If the client is run successfully, the following message is displayed:
Example app listinging on port <port number>!
You should remember this port to use in the next step.
For example, in the below picture, app is up at port 3020.
Step 2: Open your web browser and type the following:
The response is shown on the web browser.
Example:
To get the symbol list of HNX, using function Securities, follow the below steps:

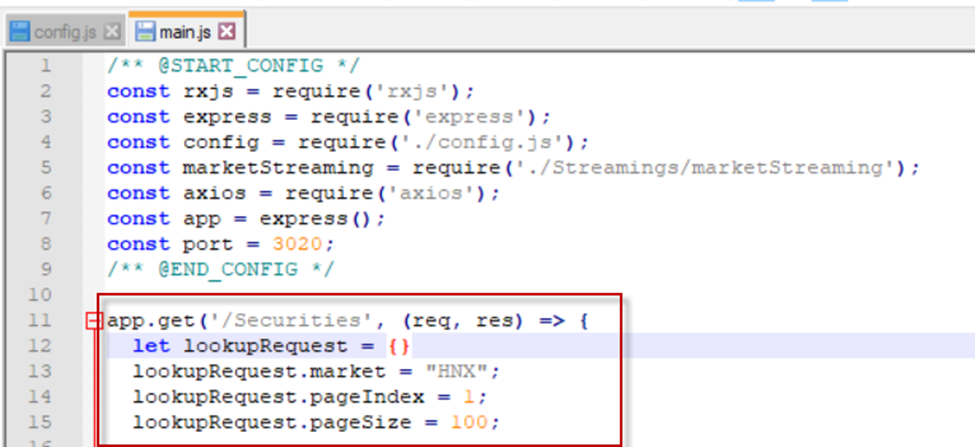

Open file main.js, find /Securities, input HNX to the market field and save the file.
Run the client by command:

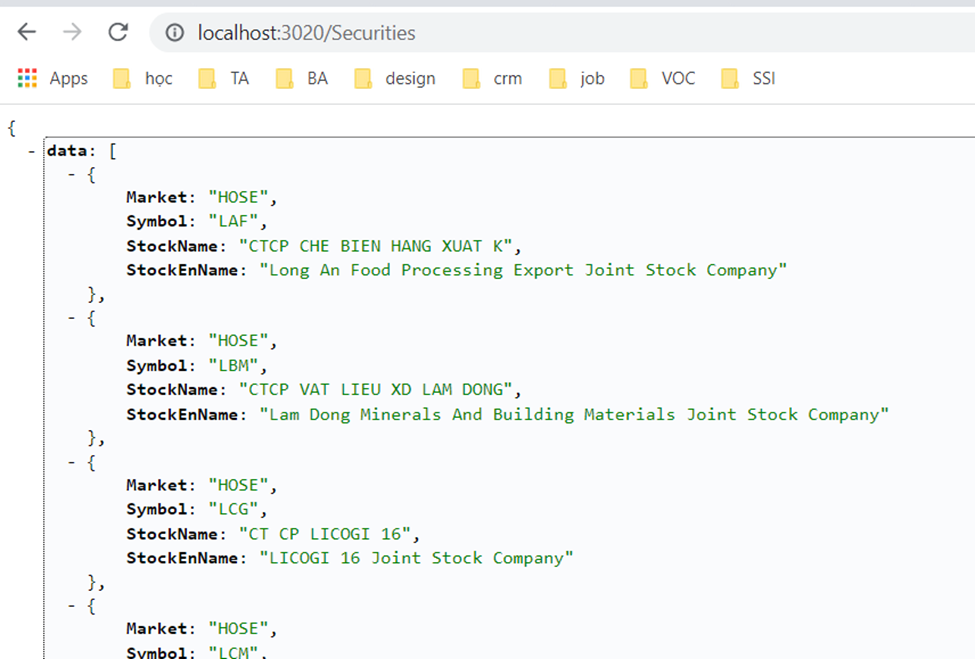

Open web browser and type: http://localhost:3020/Securities
Streaming Market data

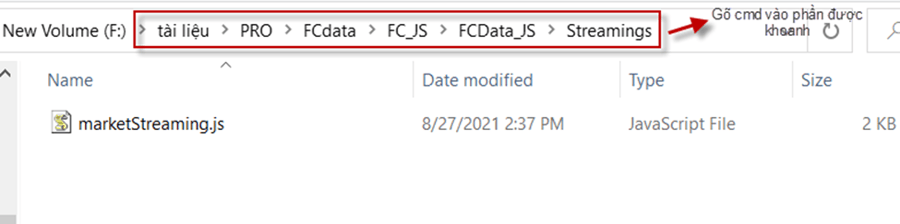

Step 1: Launch command line and go to the installed folder. You can go to the folder by explorer and then type cmd on the address bar to launch the command line.

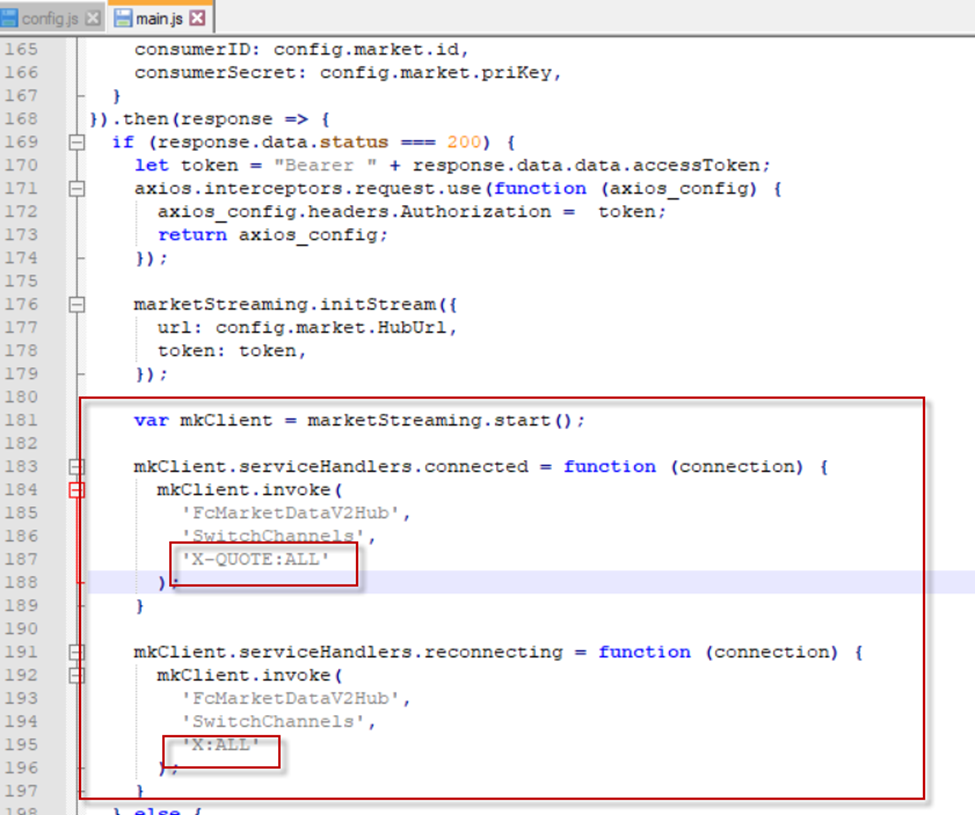

Step 2: Open file main.js, go to line 183 (mkClient.serviceHandlers.connected) to enter data type and save the file.
Step 3: Run the client by command
Client Java
Setup
Client download link
https://github.com/SSI-Securities-Corporation/java-fcdata
Java setup
Requires computer or laptop to have Java installed
Install Java Client
Step 1: Extract the downloaded file
Step 2: Launch command line
The screen displays the window as follows:
Step 3: Run the following command to install sample client
Run Client
In the installed folder, there are two files:
fcdata.json is the file storing service connection configuration (service access endpoints, ConsumerID, ConsumerSecret). You need to input the API connection key created on iBoard at registration steps to this file before running the client.
samples-2.0.0 run file jar
Setup API connection key to fcdata.json file
Input your API connection key to the fcdata.json file and save.
ConsumerId
ConsumerSecret
File fcdata.json contains pre-set input parameters for the APIs. You can change these parameters to feed your needs.
To change the input paramters, open the file fcdata.json (with Notepad ++…), edit the values and save.
To run the test:
Step 1: Input your API connection key to the fcdata.json file and save.
Step 2: Run Client and select 1 + Corresponding API order to test API data
Note:
Re-enter the connection key or change the API input. Save the file and select number 9 to re-initialize the Client
Re-initialize Client -> Select number 3 to Exit
Streaming Market data
Step 1: Input your API connection key and input channels to the fcdata.json file and save.
Refer to 2. Streaming FastConnect Data for more details of each message type.
Step 2: Run Client and select 2 to listen to the stream
Note:
Re-enter the connection key or change the API input. Save the file and select number 9 to re-initialize the Client
Re-initialize Client -> Select number 3 to Exit
Client .NET
Setup
Sample code download link
Client installation
Step 1: Extract the downloaded zip file and go to the extracted folder
Step 2: Open Client
Double click on the text icon "DotnetClientTest"
Client displays information as follows:
Run Client
In the installation folder, there is one file:
data is the file storing service connection configuration (service access endpoints, ConsumerID, ConsumerSecret). You need to input the API connection key created on iBoard at registration steps to this file before running the client.
Setup API connection key to data file
Input your API connection key to the data file and save.
File data contains pre-set input parameters for the APIs. You can change these parameters to feed your needs.
To change the input paramters, open the file data (with Notepad ++…), edit the values and save.
To run the test:
Step 1: Input your API connection key to the data file and save.
Step 2: Run Client and select 2 + Corresponding API order to test API data
Note:
Re-enter the connection key or change the API input. Save the file and select number 10 to re-initialize the Client
Re-initialize Client -> Select number 3 to Exit
Streaming Market data
Step 1: Input your API connection key and input channels to the fcdata.json file and save.
Refer to 2. Streaming FastConnect Data for more details of each message type.
Run Client and select 1 to listen to the stream
Note:
Re-enter the connection key or change the API input. Save the file and select number 10 to re-initialize the Client
Re-initialize Client -> Select number 3 to Exit
